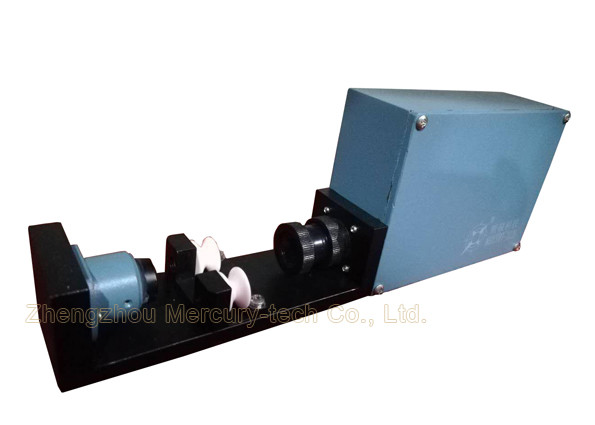

Laser Measuring Instrument For Filament Diameter Measurement In Extrusion Line. Model CDM03.
Filament diameter measuring instrument is the high-accuracy survey installment that uses the CCD scan to carry on the no-contacts on-line survey. Applicable to metal sick, optical fiber , etc with the measurement and control. can simultaneously show the silk and fiber's diameter, roundness.

2. The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V ± 15% 50 - 60Hz
Operating temperature: -10 ~ 40 °C
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W
Dimensions:
Measuring head: 372mm×360mm×60mm

3. Technical parameters

4. The Device with the following Characteristics
1. Can be connected PLC, industrial computer.
2. RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.
3. Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic feedback control to control the tolerance, improve product quality, reducing consumption.

Zhengzhou Mercury-Tech Co., Ltd. was founded in 1987, formerly known as Sanli works, is China's first commercial laser gauge birthplace, has become China's largest professional manufacturer of laser diameter measurement, with dozens of models of laser products.The main products are Laser diameter measurement guage, length counter and other measuring equipment, IPC and PLC control systems, CCV line control systems.

Products have been widely used in wire and cable, glass, metal pipes, plastic pipes, rubber roller, medical devices, nuclear materials, machinery manufacturing and other industries. It is your ideal choice for improving product quality.

Factories located in Zhengzhou City National High-tech Industrial Development Zone. Mercury-Tech as laser diameter measurement industry leading brands, committed to be "industry first" and "best-in" laser measuring instruments, with nearly 30 years of problem-solving experience, we understand our business needs better than others, providing customers with the best solutions.

In laser measurement industry, Mercury-Tech's products have successfully been used by a number of global enterprises and Fortune 500 companies, such as the Teledyne Technology, TE, Goodyear, Faber Castell, LG, the Darka, Hitachi, Fujikara, Zhejiang University, Beijing University of Science and Technology, Baosheng cable, Shangshang cable. Customers are in 37 countries, such as Germany, Poland, Holland, USA, South Korea, India...
