    Filament Laser Outer Diameter Measuring Machine Humidity < 85% RH

    Ask Lasest Price
    Brand Name : Mercury-tech
    Model Number : CDM03
    Certification : ISO9001
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 500 Set/Sets per Month
    Delivery Time : In three days after getting your payment
    • Product Details
    • Company Profile

    Filament Laser Outer Diameter Measuring Machine Humidity < 85% RH

    CDM03 Non-contact Filament Diameter Measurement Laser Outer Diameter Measuring Machine.

    Filament diameter measuring instrument is the high-accuracy survey installment that uses the CCD scan to carry on the no-contacts on-line survey. Applicable to metal sick, optical fiber , etc with the measurement and control. can simultaneously show the silk and fiber's diameter, roundness.


    1. Technical parameters

    ModelMeasuring RangeDifferentiationAccuracy
    LDM-250.2-20mm0.001±0.02%×(Reading)±0.001mm
    CDM-030.01-2mm0.001±0.02%×(Reading)±0.001mm

    Filament Laser Outer Diameter Measuring Machine Humidity < 85% RH


    2. The performance indicators:
    Measurement: Laser scanning
    Laser: Visible red semiconductor laser
    Laser output power: <2mW
    Operating voltage: ~ 220V ± 15% 50 - 60Hz
    Operating temperature: -10 ~ 40 °C
    Humidity: <85% RH
    Work mode: continuous
    Power consumption: <30W
    Dimensions:
    Measuring head: 372mm×360mm×60mm


    3. The Device with the following Characteristics
    (1). Can be connected PLC, industrial computer.
    (2). RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.

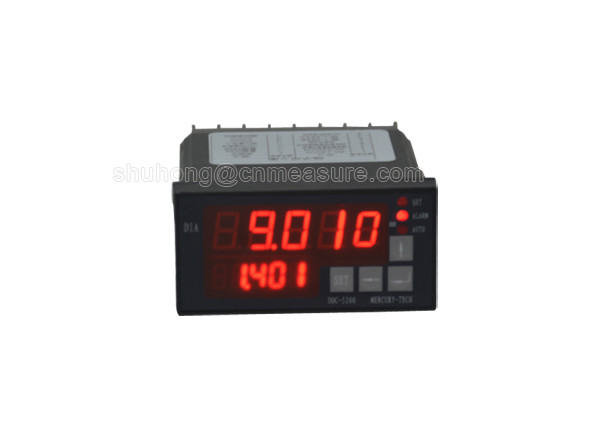

    (3). Can be equipped remote controller DDC-5, on the extruder and automatic feedback control to control the tolerance, improve product quality, reducing consumption.
