Cable Wire Pipe Laser Diameter Measurement Unit Diameter Controller Device.

Specifications
1). Cable wire pipe laser diameter measurement unit
2). Accuracy: 0.001
3). Measurement & control
4). Model LDM-25. diameter measuring range is from 0.1-20mm
Model LDM-50. diameter measuring range is from 0.2-45mm

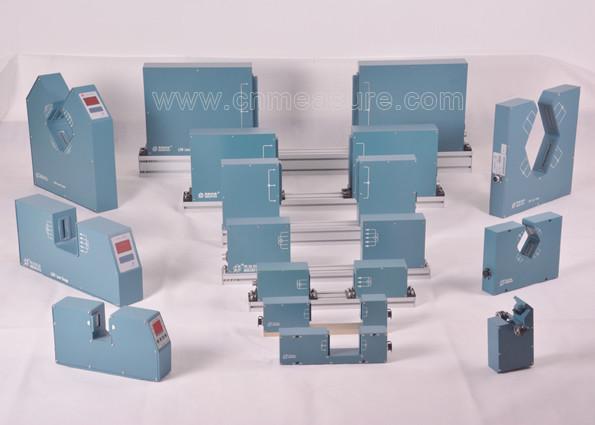

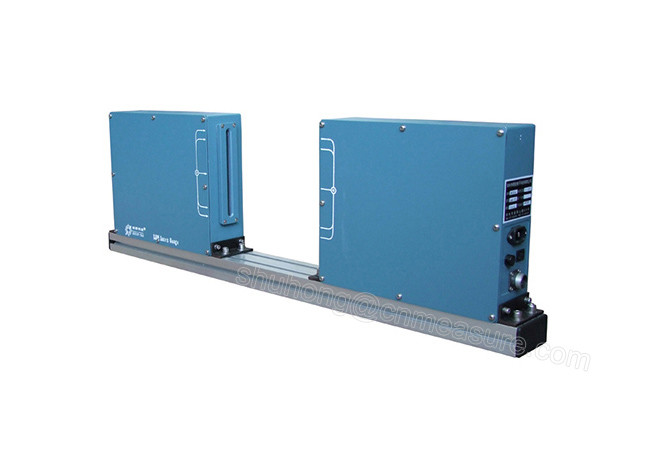

Cable wire pipe laser diameter measurement unit is the high-accuracy installment that uses the laser scan to carry on the no-contacts on-line measurement. It is mainly used in measuring of outer diameter and adjusting the extruder screw or traction speed, to control the outside diameter. It is applicable to measure and control the diameter of metal wires, glass, pipes, wire and cable, etc.
It can also be applied to the outer diameter of workpiece and size measurements.

1. Technical parameters

2. The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V plus/minus 15% 50 - 60Hz
Operating temperature: -10 ~ 40 Degrees Celsius
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W
Dimensions:
LDM25/LDM50 Gauge head: 461mm(length) * 80mm(wide) * 200mm(high)
Stand size: 350mm * 200mm * (700-1000)mm
Center high of the measuring position is 900-1200mm
Stand height can be adjusted.

3. Display Controller
1). It be used to remote display and control.
2). Applicable to DC motors, VVVF motor.
3). The controller can control the speed of extruder or the tractor according to the diameter tolerance.
4). Can simultaneously measure the outside diameter.
Signal distance: more than 500m
Output voltage: plus/minus 10V
With RS485 It can connect to PLC industry controlling computer

Cable Wire Pipe Dual Axis Laser Diameter Measurement Unit is the high-accuracy installment that uses the laser scan to carry on the no-contacts on-line measurement. It (namely X axis and Y axis) simultaneously measure the diameter in two directions.
It is applicable to measure and control the diameter of metal wires, glass, pipes, wire and cable, etc. It is overcomes the shortcomming of bi-directional measurement. The display unit can simultaneously show the diameter mean value and roundness of wire and pipe.

1. Technical parameters
