| Brand Name : | Mercury-tech |
| Model Number : | LDM-25 LDM-50 LDM-100B LDM-150 LDM-210 LDM-380 |
| Certification : | CE |
| Price : | USD 1500-3000 PCS |
| Payment Terms : | T/T |
| Supply Ability : | 2000 PCS |
| Delivery Time : | 3 work days |

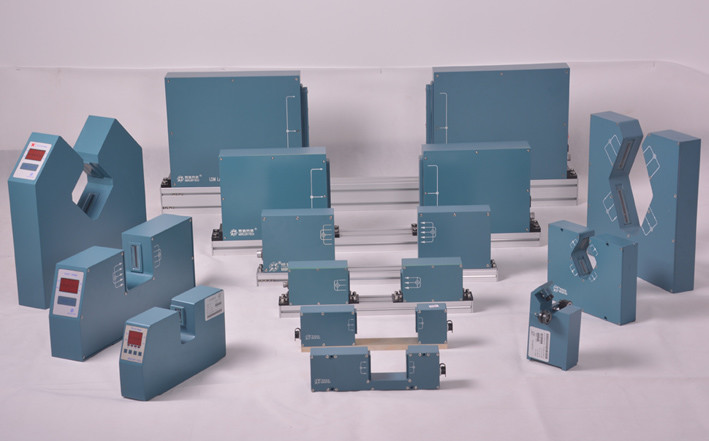

Laser Diameter Measuring Gauge (Laser Gauge,diamerer measuring instrument,diameter measurement gauge) is the high-accuracy online instrument that uses the laser scan to carry on Non-contact the on-line measure. Diameter gauge is a scanning-laser based measurement system designed to measure and feed back to control and recording equipment the external diameter of a wide variety of product including, but not limited to, extruded forms such as electrical wire, plastic and glass filaments, tubing, and similar.
| Model | LDM-25 | LDM-50 | LDM-100B | LDM-150 | ||
| Measuring Range | 0.2-20mm | 0.2-45mm | 0.2-95mm | 0.2-145mm | ||
| Min Size | 0.2mm | 0.2mm | 0.2mm | 0.2mm | ||
| Max Size | 20mm | 45mm | 95mm | 145mm | ||
| Accuracy* | ±0.001 | ±0.002 | ±0.002 | ±0.01 | ||
| Repeatability** | 0.5μm | 0.5μm | 0.5μm | 1μm | ||
| Resolution | 0.001mm | 0.001mm | 0.001mm | 0.001mm | ||
| Dimension | 48.5x20x8.5cm | 48.5x20x8.5cm | 62x25x6cm | 92x29x9.5cm | ||
| Units of Measurement | mm | mm | mm | mm | ||
| Power | ~220V±15%, 50-60HZ | |||||
| Temperature | -10~40℃ | |||||
| Humidity | <85% RH | |||||
| Gauge Head Serial I/O | Standard: RS485 Options:RS232 / USB | |||||
| Communication Protocol | Modbus/Profibus | |||||
| Presets | Diameter, +Tol,-Tol, Alarm Setting | |||||
| Transparent Measurement | Option | Option | Option | Option | ||
| Control Output | ||||||
| Serial I/O | RS485 | |||||
| Analogues Output | 16 bit ±10V DC Output | |||||
| Relay Output | 2 Volt Free (Status, Upper Tolerance, Lower Tolerance) | |||||
The performance:
1. It is suitable for online measurement and control of the outer diameter of any wire and workpiece
2.Non-contact measurement, fast detection speed, high precision and stable performance
3. The Fθ optical lens is adopted, which has little influence when the measured object shakes
4. Using advanced DSP processor, built-in PID adjustment module, can automatically control the outer diameter of the wire
5.Using ultra-long life semiconductor laser, no harm to human body
6. The suspension motor is adopted, which can adapt to work in a harsher environment
7. The outer shell of the instrument is made of aluminum alloy, rust-proof and corrosion-resistant, and the quality is more guaranteed
8. non-contact laser diameter measurement, high speed, high accuracy and good repeatability.
9. Real time outside diameter and roundness display, improve quality control and production efficiency, reduce the waste of materials.
10. Various digital and analog control signal functions, to achieve fully automated production.
11. Various preset functions,nominal value, the upper and lower tolerance, alarm control presets, easy to operate.
12. Standard data port connection ready,compatible software for data analysis development convenience.
